SPECIFICATION

Write type cylindrical                             DC 3 Write type

Switch appearance type                        Cylinder type

Theory                                                      Inductive sensor

Type                                                          PNP $ NPN

Diameter of head                                    12mm

Detecting distance                                  5mm

Supply voltage                                         DC 6-24V

Current output                                        300mA

Response frequency                              0.5KHZ

Detect object                                           Iron

Operating temperature                       -25C to +55C (Non-freezing condition)

Cable length                                            110cm/43.3

External material Plastic                       Alloy

Net weight                                              46g

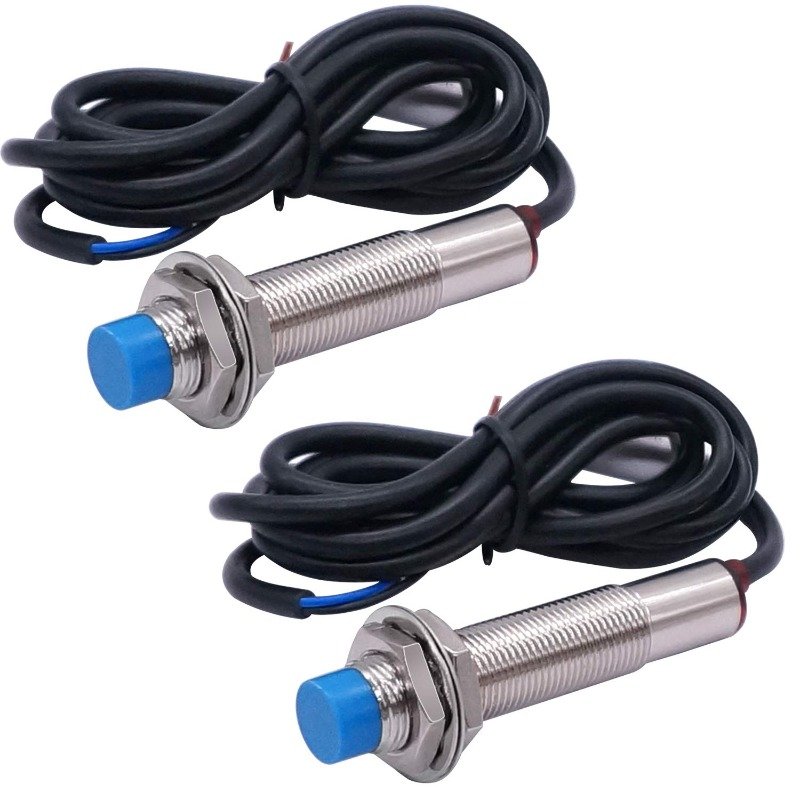

Model NO                                                LJ12A3-4-Z/BY

Size                                                    6.2x2cm/2.4cx0.8c(L*Max.Dia)
